Kubernetes

Kubernetes ↗ is a container orchestration tool that is used to deploy applications onto physical or virtual machines, scale the deployment to meet traffic demands, and push updates without downtime. The Kubernetes cluster, or environment, where the application instances are running is connected internally through a private network. You can install the cloudflared daemon inside of the Kubernetes cluster in order to connect applications inside of the cluster to Cloudflare.

This guide will cover how to expose a Kubernetes service to the public Internet using a remotely-managed Cloudflare Tunnel. For the purposes of this example, we will deploy a basic web application alongside cloudflared in Google Kubernetes Engine (GKE). The same principles apply to any other Kubernetes environment (such as minikube, kubeadm, or a cloud-based Kubernetes service) where cloudflared can connect to Cloudflare's network.

Architecture

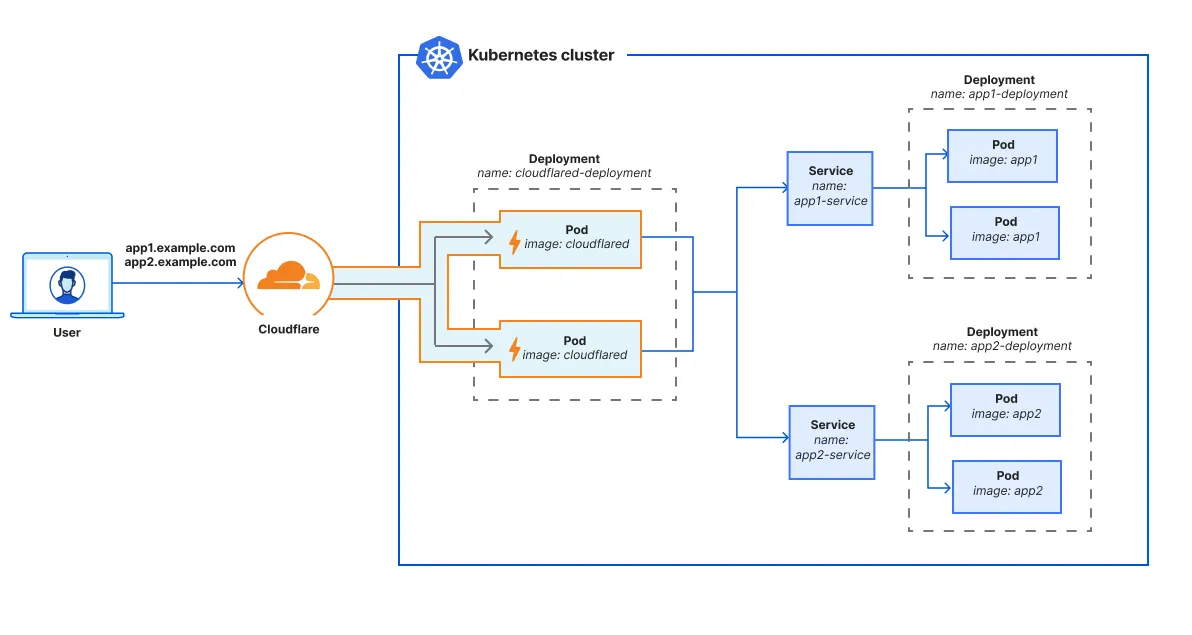

Diagram showing how a user connects to Kubernetes services through Cloudflare Tunnel

As shown in the diagram, we recommend setting up cloudflared as an adjacent deployment ↗ to the application deployments. Having a separate Kubernetes deployment for cloudflared allows you to scale cloudflared independently of the application. In the cloudflared deployment, you can spin up multiple replicas running the same Cloudflare Tunnel -- there is no need to build a dedicated tunnel for each cloudflared pod. Each cloudflared replica / pod can reach all Kubernetes services in the cluster.

Once the cluster is connected to Cloudflare, you can configure Cloudflare Tunnel routes to control how cloudflared will proxy traffic to services within the cluster. For example, you may wish to publish certain Kubernetes application to the Internet and restrict other applications to internal WARP client users.

Prerequisites

To complete the following procedure, you will need:

1. Create a GKE cluster

To create a new Kubernetes cluster in Google Cloud:

  1. Open Google Cloud ↗ and go to Kubernetes Engine.
  2. In Clusters, select Create.
  3. Name the cluster. In this example, we will name it cloudflare-tunnel.
  4. (Optional) Choose your desired region and other cluster specifications. For this example, we will use the default specifications.
  5. Select Create.
  6. To connect to the cluster:
    1. Select the three-dot menu.
    2. Select Connect.
    3. Select Run in Cloud Shell to open a terminal in the browser.
    4. Select Authorize.
    5. Press Enter to run the pre-populated gcloud command.
    6. (Recommended) In the Cloud Shell menu, select Open Editor to launch the built-in IDE.
  7. In the Cloud Shell terminal, run the following command to check the cluster status:
    Terminal window
    kubectl get all
    NAME                 TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
    service/kubernetes   ClusterIP   34.118.224.1   <none>        443/TCP   15m

2. Create pods for the web app

A pod represents an instance of a running process in the cluster. In this example, we will deploy the httpbin ↗ application with two pods and make the pods accessible inside the cluster at httpbin-service:80.

  1. Create a folder for your Kubernetes manifest files:

    Terminal window
    mkdir tunnel-example

  2. Change into the directory:

    Terminal window
    cd tunnel-example

  3. In the tunnel-example directory, create a new file called httpbin.yaml. This file defines the Kubernetes deployment for the httpbin app.

    httpbin.yaml
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: httpbin-deployment
      namespace: default
    spec:
      replicas: 2
      selector:
        matchLabels:
          app: httpbin
      template:
        metadata:
          labels:
            app: httpbin
        spec:
          containers:
          - name: httpbin
            image: kennethreitz/httpbin:latest
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 80

  4. Create a new httpbinsvc.yaml file. This file defines a Kubernetes service that allows other apps in the cluster (such as cloudflared) to access the set of httpbin pods.

    httpbinsvc.yaml
    apiVersion: v1
    kind: Service
    metadata:
      name: httpbin-service
      namespace: default
    spec:
      type: LoadBalancer
      selector:
        app: httpbin
      ports:
      - port: 80
        targetPort: 80

  5. Use the following command to run the application inside the cluster:

    Terminal window
    kubectl create -f httpbin.yaml -f httpbinsvc.yaml

  6. Check the status of your deployment:

    Terminal window
    kubectl get all
    NAME                                     READY   STATUS    RESTARTS   AGE
    pod/httpbin-deployment-bc6689c5d-b5ftk   1/1     Running   0          79s
    pod/httpbin-deployment-bc6689c5d-cbd9m   1/1     Running   0          79s


    NAME                      TYPE           CLUSTER-IP       EXTERNAL-IP    PORT(S)        AGE
    service/httpbin-service   LoadBalancer   34.118.225.147   34.75.201.60   80:31967/TCP   79s
    service/kubernetes        ClusterIP      34.118.224.1     <none>         443/TCP        24h


    NAME                                 READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/httpbin-deployment   2/2     2            2           79s


    NAME                                           DESIRED   CURRENT   READY   AGE
    replicaset.apps/httpbin-deployment-bc6689c5d   2         2         2       79s

3. Create a tunnel

To create a Cloudflare Tunnel:

  1. Open a new browser tab and log in to Zero Trust ↗.

  2. Go to Networks > Tunnels.

  3. Select Create a tunnel.

  4. Choose Cloudflared for the connector type and select Next.

  5. Enter a name for your tunnel (for example, gke-tunnel).

  6. Select Save tunnel.

  7. Under Choose an environment, select Docker.

    Applications must be packaged into a containerized image before you can run it in Kubernetes. Therefore, we will use the cloudflared Docker container image to deploy the tunnel in Kubernetes.

  8. Instead of running the installation command, copy just the token value rather than the whole command. The token value is of the form eyJhIjoiNWFiNGU5Z... You will need the token for the Kubernetes manifest file.

Leave the Cloudflare Tunnel browser tab open while we focus on the Kubernetes deployment.

4. Store the tunnel token

cloudflared uses a tunnel token to run a remotely-managed Cloudflare Tunnel. You can store the tunnel token in a Kubernetes secret ↗, which requires data to be encoded as a base64-encoded string. The encoding is not meant to protect the token from being read but to allow for the safe handling of binary data within Kubernetes.

  1. Convert the tunnel token into base64 format:

    Terminal window
    'eyJhIjoiNWFiNGU5Z...' | base64
    ZXlKa...NKOQo=

  2. In GKE Cloud Shell, create a tunnel-token.yaml file with the following content. Make sure to replace <base64_tunnel_token> with your base64-encoded token value (ZXlKa...NKOQo=).

    tunnel-token.yaml
    apiVersion: v1
    data:
        token: <base64_tunnel_token>
    kind: Secret
    metadata:
        name: tunnel-token
        namespace: default
    type: Opaque

  3. Create the secret:

    Terminal window
    kubectl create -f tunnel-token.yaml

  4. Check the newly created secret:

    Terminal window
    kubectl get secrets
    NAME        TYPE     DATA   AGE
    tunnel-token   Opaque   1      100s

5. Create pods for cloudflared

To run the Cloudflare Tunnel in Kubernetes:

  1. Create a Kubernetes deployment for a remotely-managed Cloudflare Tunnel:

    tunnel.yaml
    apiVersion: apps/v1
    kind: Deployment
    metadata:
    name: cloudflared-deployment
    namespace: default
    spec:
    replicas: 2
    selector:
      matchLabels:
        pod: cloudflared
    template:
      metadata:
        labels:
          pod: cloudflared
      spec:
        securityContext:
          sysctls:
          # Allows ICMP traffic (ping, traceroute) to resources behind cloudflared.
            - name: net.ipv4.ping_group_range
              value: "65532 65532"
        containers:
          - image: cloudflare/cloudflared:latest
            name: cloudflared
            env:
              - name: token_value
                valueFrom:
                  secretKeyRef:
                    name: tunnel-token
                    key: token
            command:
            # Parameters must be in the correct order relative to the "run" command.
              - cloudflared
              - tunnel
              - --no-autoupdate
              - --loglevel
              - debug
              - --metrics
              - 0.0.0.0:2000
              - run
            args:
              - --token
              - $(token_value)
            livenessProbe:
              httpGet:
                # Cloudflared has a /ready endpoint which returns 200 if and only if
                # it has an active connection to Cloudflare's network.
                path: /ready
                port: 2000
              failureThreshold: 1
              initialDelaySeconds: 10
              periodSeconds: 10

  2. Deploy cloudflared to the cluster:

    Terminal window
    kubectl create -f tunnel.yaml

    Kubernetes will install the cloudflared image on two pods and run the tunnel using the command cloudflared tunnel --no-autoupdate --loglevel debug --metrics 0.0.0.0:2000 run --token eyJhIjoiNWFiNGU5Z...

  3. Check the status of your cluster:

    Terminal window
    kubectl get all
    NAME                                          READY   STATUS    RESTARTS   AGE
    pod/cloudflared-deployment-6d5f9f9666-85l5w   1/1     Running   0          21s
    pod/cloudflared-deployment-6d5f9f9666-wb96x   1/1     Running   0          21s
    pod/httpbin-deployment-bc6689c5d-b5ftk        1/1     Running   0          3m36s
    pod/httpbin-deployment-bc6689c5d-cbd9m        1/1     Running   0          3m36s


    NAME                      TYPE           CLUSTER-IP       EXTERNAL-IP    PORT(S)        AGE
    service/httpbin-service   LoadBalancer   34.118.225.147   34.75.201.60   80:31967/TCP   3m36s
    service/kubernetes        ClusterIP      34.118.224.1     <none>         443/TCP        24h


    NAME                                     READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/cloudflared-deployment   2/2     2            2           22s
    deployment.apps/httpbin-deployment       2/2     2            2           3m37s


    NAME                                                DESIRED   CURRENT   READY   AGE
    replicaset.apps/cloudflared-deployment-6d5f9f9666   2         2         2       22s
    replicaset.apps/httpbin-deployment-bc6689c5d        2         2         2       3m37s

You should see two cloudflared pods and two httpbin pods with a Running status. If your cloudflared pods keep restarting, make sure that your cloudflared run parameters are in the correct order. In the example above, --loglevel, --no-autoupdate, and --metrics should come before the run command, while --token comes after the run command.

6. Verify tunnel status

To print logs for a cloudflared instance:

Terminal window
kubectl logs pod/cloudflared-deployment-6d5f9f9666-85l5w
2025-06-11T22:00:47Z INF Starting tunnel tunnelID=64c359b6-e111-40ec-a3a9-199c2a656613
2025-06-11T22:00:47Z INF Version 2025.6.0 (Checksum 72f233bb55199093961bf099ad62d491db58819df34b071ab231f622deff33ce)
2025-06-11T22:00:47Z INF GOOS: linux, GOVersion: go1.24.2, GoArch: amd64
2025-06-11T22:00:47Z INF Settings: map[loglevel:debug metrics:0.0.0.0:2000 no-autoupdate:true token:*****]
2025-06-11T22:00:47Z INF Generated Connector ID: aff7c4a0-85a3-4ac9-8475-1e0aa1af8d94
2025-06-11T22:00:47Z DBG Fetched protocol: quic
2025-06-11T22:00:47Z INF Initial protocol quic
...

7. Add a tunnel route

Now that the tunnel is up and running, we can use the Zero Trust dashboard to route the httpbin service through the tunnel.

  1. Switch to the browser tab where you were configuring Cloudflare Tunnel.

  2. Go to the Route tunnel step.

  3. In the Public hostnames tab, enter a hostname for the application (for example, httpbin.<your-domain>.com).

  4. Under Service, enter http://httpbin-service. httpbin-service is the name of the Kubernetes service defined in httpbinsvc.yaml.

  5. Select Complete setup.

8. Test the connection

To test, open a new browser tab and go to httpbin.<your-domain>.com. You should see the httpbin homepage.

You can optionally create an Access application to control who can access the service.
